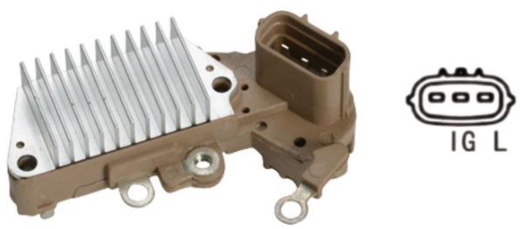

XIN452
• 12 Volt, A-Circuit, D-IG-L Terminals, 14.8 Vset, w/ LRC
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.
• Replaces - DENSO 126000-1970, 126000-1971, 126000-1977, 126000-2740, 126000-3060, SUZUKI 32500-60G10, 32500-77E10
-
XIN453
• 12 Volt, A-Circuit, S-IG-L Terminals, 14.4 Vset, w/o LRC
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.,*Replaces Denso 126000-1960 w/ 14.6 Vset.
• Replaces - DENSO 126000-1960, 126000-2050, 126000-2200, TOYOTA 27700-50020, 27700-50030, 27700-62020
-
XIN454
• 12 Volt, B-Circuit, L-FR Terminals, 14.6 Vset
• Poongsung IR/IF Alternators
• Stator or light activated
• Notes - Standard lamp function - no output.
-
XIN455
• 12 Volt, A-Circuit, S-FR-IG-L Terminals, 14.5 Vset
• Denso IR/IF Alternators
• Notes - Active lamp function - with output.
• Replaces - DENSO 126000-2190, 126000-2450, HONDA 31150-P5A-003, 31150-P5A-0030, 31150-P5G-003, 31150-P5G-0030
-
XIN460
• 24 Volt, A-Circuit, S-IG-L Terminals, 28.0 Vset
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.
• Replaces - DENSO 126000-2390, 126000-7120, TOYOTA 27700-58040, 27700-58060
