XIN6001
• 12 Volt, B-Circuit, S-IG-L Terminals, 14.2 Vset
• Denso IR/IF Alternators
• Shorted field, lamp & choke protection
• Notes - Active lamp function - with output.
• Replaces - DENSO 0011, 126600-0011, TOYOTA 27700-50060
-
XIN6002
• 12 Volt, B-Circuit, S-IG-L Terminals, 14.2 Vset
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.
• Replaces - DENSO 0022, 0023, 126600-0022, 126600-0023, TOYOTA 27700-20060
-
XIN6003
• 12 Volt, B-Circuit, S-F-L Terminals, 15.0 Vset, w/ LRC
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.
• Replaces - DENSO 0030, 0031, 126600-0030, 126600-0031
-
XIN6004

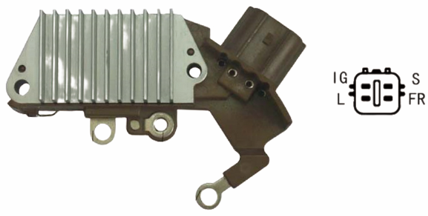

• 12 Volt, B-Circuit, IG-C-L-FR Terminals, 14.5 Vset
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.
• Replaces - DENSO 0040, 0042, 126600-0040, 126600-0042
-
XIN6009
• 12 Volt, B-Circuit, F-L Terminals, 14.8 Vset, 2 sec. LRC
• Denso IR/IF Alternators
• Shorted field & lamp protection
• Notes - Standard lamp function - no output
• Replaces - DENSO 126600-0090
