XIN337
• 12 Volt, A-Circuit, IG-C-L-FR Terminals, 14.0 Vset, w/ LRC
• Denso IR/IF Alternators
• Ignition activated
• Replaces - DENSO 126000-3370, TOYOTA 27700-21040
-

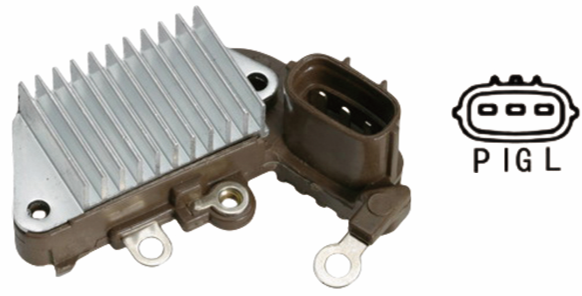

XIN348
• 12 Volt, A-Circuit, P-IG-L Terminals, 14.4 Vset
• Denso IR/IF Alternators
• Shorted field& lamp protection
• Notes - Active lamp function - with output.
• Replaces - DENSO 126000-3480
-

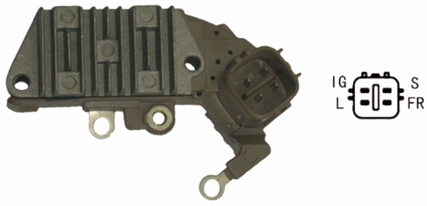

XIN369
• 12 Volt, A-Circuit, IG-S-L-FR Terminals, 14.3 Vset
• Denso IR/IF Alternators
• Ignition activated
• Notes - Standard lamp function - no output.,Without LRC
• Replaces - DENSO 126000-3690, TOYOTA 27700-50040
-

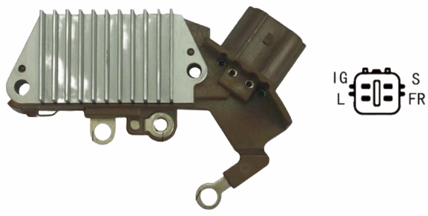

XIN372
• 12 Volt, A-Circuit, 14.2 Vset
• Denso IR/IF Alternators
• Ignition activated
• Notes - Standard lamp function - no output
• Replaces - DENSO 126000-3720, TOYOTA 27700-31040
-
XIN373
• 24 Volt, A-Circuit, D-IG-L Terminals, 28.4 Vset
• Denso IR/IF Alternators
• Ignition activated
• Notes - Active lamp function - with output.,D-terminal has no function.
• Replaces - DENSO 126000-3730
