XIN446
• 12 Volt, A-Circuit, IG-C-L-FR Terminals, 14.5 Vset, 10 sec. LRC
• Denso IR/IF Alternators
• Ignition activated
• Notes - 12.7V C-terminal voltage
• Replaces - DENSO 126000-2100
-

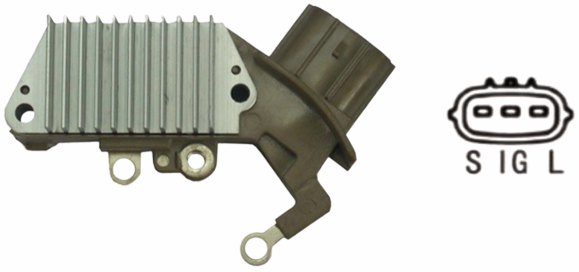

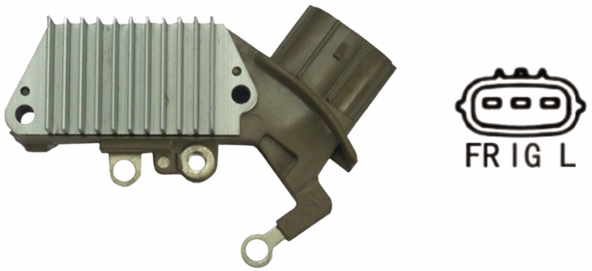

XIN447
• 12 Volt, A-Circuit, M-IG-L (M Terminal is Frequency) Terminals, 14.5 Vset
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.
• Replaces - DENSO 126000-3130, 126000-3131, 126000-3170, 126000-3171, TOYOTA 27700-21020
-
XIN449
• 12 Volt, A-Circuit, P-IG-L Terminals, 14.5 Vset
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.
• Replaces - CAT 113-4462, DENSO 126000-1940, 126000-2181
-
XIN450
• 12 Volt, A-Circuit, P-IG-L Terminals, 14.5 Vset
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.
• Replaces - DENSO 126000-1800
-
XIN451
• 12 Volt, A-Circuit, P-IG-L Terminals, 14.5 Vset
• Denso IR/IF Alternators
• Ignition activated
• Notes - P = phase.,Active lamp function - with output.,IN451 replaces both 126000-2630 (std. lamp) & 126000-3490 (active lamp)
• Replaces - DENSO 126000-3490, ISUZU 1-81270017-0
