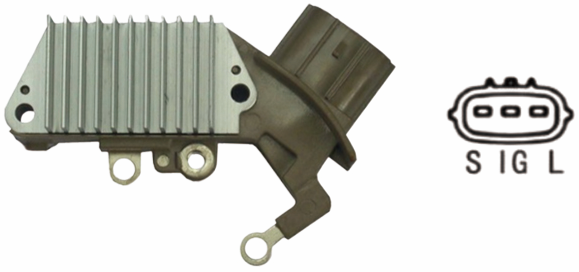

XIN441
• 12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Vset, w/ LRC
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.,*Replaces Denso 126000-1850 w/o LRC,**Replaces Denso 126000-2260 w/ 14.1 Vset
• Replaces - DENSO 126000-1810, 126000-1850, 126000-1870, 126000-2000, 126000-2260, MAZDA KJ01-18-W70, KL47-18-W51, TOYOTA 27700-20050, 27700-46060, 27700-62010, 27700-64130
-
XIN442
• 12 Volt, A-Circuit, L Terminal, 14.1 Vset, w/o LRC
• Denso IR/IF Alternators
• Notes - Active lamp function - with output.,Similar to IN443 except: IN442: wo / LRC. IN443: w/ LRC.
• Replaces - DENSO 126000-1130, 126000-7160
-

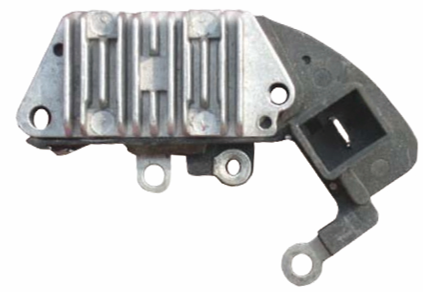

XIN443
• 12 Volt, A-Circuit, L Terminal, 14.4 Vset, 5 sec. LRC
• Denso IR/IF Alternators
• Lamp activated w/ lamp latching feature
• Notes - Active lamp function - with output.,Similar to IN442 except: IN442: wo / LRC. IN443: w/ LRC
• Replaces - DENSO 126000-1760
-

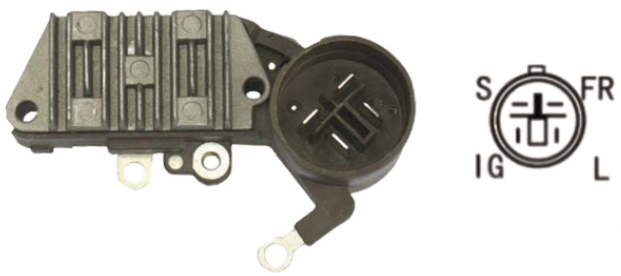

XIN444
• 12 Volt, A-Circuit, S-FR-IG-L Terminals, 14.5 Vset
• Denso IR/IF Alternators
• Notes - Active lamp function - with output.
• Replaces - DENSO 126000-1060
-
XIN445
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.
• Replaces - DENSO 126000-2090, 126000-2160, 126000-2470, 126000-2610, HONDA 31150-P2T-003, 31150-P2T-0030, 31150-PEA-A01, 31150-PV4-0030, MARELLI 940038097
