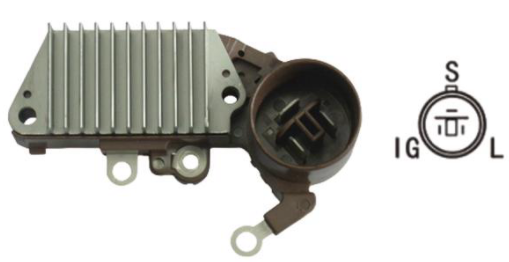

XIN436
• 12 Volt, A-Circuit, S-IG-L Terminals, 14.4 Vset, w/ LRC
• Denso IR/IF Alternators
• Notes - Active lamp function - with output.,For 24 volt version use IN461.
• Replaces - DENSO 126000-0931, 126000-0932, 126000-1400, 126000-1450, 126000-1530, JOHNDEERE RE51297, TY6684, TOYOTA 27700-11050, 27700-70030, 27700-76020
-
XIN437
• 12 Volt, A-Circuit, S-IG-L Terminals, 14.5 Vset, 5 sec. LRC
• Denso IR/IF Alternators
• Circuit protected against shorted field, shorted lamp, load dump, battery disconnect
• Notes - Active lamp function - with output.,*Replaces Denso 126000-1520, -1521, -1730, -2250 w/o LRC
• Replaces - DENSO 126000-1730, 126000-1750, 126000-1930, 126000-2250, TOYOTA 27700-11070, 27700-11080, 27700-66040, 27700-75020
-
XIN438
• 12 Volt, A-Circuit, S-IG-L Terminals, 14.5 Vset, 5 sec. LRC
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.
• Replaces - DENSO 126000-1110, 126000-1260, 126000-1270, TOYOTA 27700-46030, 27700-46040
-

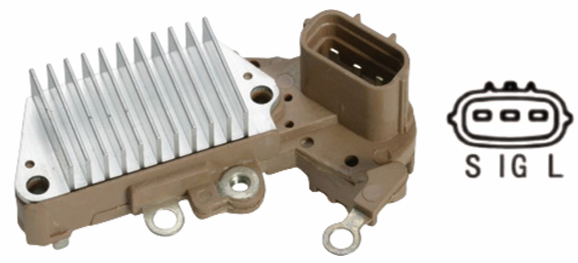

XIN439
• 12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Vset, w/ LRC
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.,*Replaces Denso 126000-1640 w/ 14.1 Vset,**Replaces Denso 126000-1670 w/o LRC
• Replaces - DENSO 126000-1580, 126000-1640, 126000-1660, 126000-1670, GM 94854171, 94857219, TOYOTA 27700-35040, 27700-46050, 27700-74030, 27700-74040,27060-74490,27060-74400
-
XIN440
• 12 Volt, A-Circuit, S-IG-L Terminals, 14.0 Vset
• Denso IR/IF Alternators
• Notes - Standard lamp function - no output.
• Replaces - DENSO 126000-7100, TOYOTA 27700-65010
