XIN233
• 24 Volt, A-Circuit, 28.0 Vset
• Denso IR/EF Alternators
• Used on:Caterpillar
• Replaces - CAT 7T2798, DENSO 126000-0380
-
XIN235
• 12 Volt, A-Circuit, S-IG-L Terminals, 14.1 Vset
• Denso IR/EF Alternators
• Used on:(1992-84) Yoyota
• Replaces - DENSO 126000-0360, 126000-0460, 126000-0500, 126000-0670, HINO 27040-1320B, TOYOTA 27700-63030, 27700-72050
-

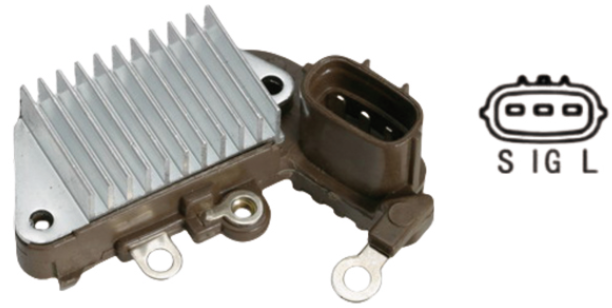

XIN240
• 12 Volt, A-Circuit, S-IG-L Terminals, 14.5 Vset
• Denso IR/IF Alternators
• Used on:Toyota Lift Trucks
• Ignition activated
• Notes - Standard lamp function - no output.
• Replaces - DENSO 126000-2400, TOYOTA 27700-78154-71
-

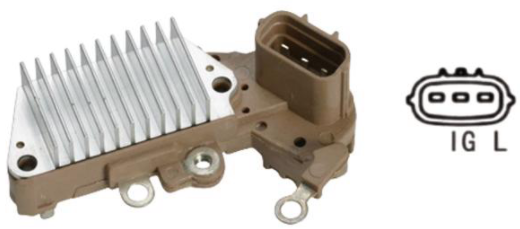

XIN248
• 12 Volt, A-Circuit, D-IG-L Terminals, 14.4 Vset
• Denso IR/IF Alternators
• Used on:(2002-98) Acura,Isuzu
• Ignition activated
• Notes - D-terminal has no function.,Active lamp function - with output.
• Replaces - DENSO 126000-2480, ISUZU 8-97183-613-0
-

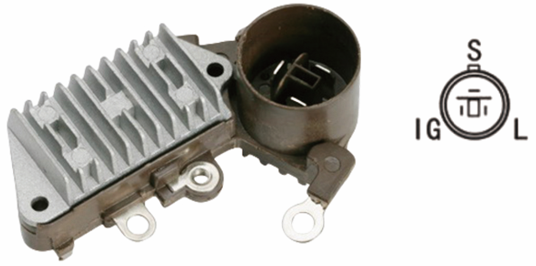

XIN250
• 12 Volt, A-Circuit, S-IG-L Terminals, 14.5 Vset
• Denso IR/IF Alternators
• Used on (1992-87)Dalhatsu,Toyota
• Notes - Active lamp function - with output.,For self-exciting version use IN250SE.
• Replaces - DAIHATSU 27700-87704-000, DENSO 126000-0550, 126000-0980, 126000-1550, 126000-1570, TOYOTA 27700-10050, 27700-10080, 27700-66010
